2002 Lund Baron Magnum ‘Gran Sport’ with Dual Axle Trailer — $26,500 — Major Refurbishment !

Known for their legendary reliability, style and exceptional performance, Lund Boats are the pinnacle of the sport and recreational fishing world.  With her unique aluminum hull construction, wide beam and specially designed hull shape, she maintains great stability in rough seas.  And that that lets you concentrate on the fishing!  The pros agree — Lund Boats are perhaps the very best built boats in their class.

This Baron Magnum ‘Gran Sport’ model is top-of-the-line for the largest boat Lund made at the time.  She is an unusual configuration with an inboard MerCruiser 5.0 MPI engine to power the Alpha outdrive. There is also a Yamaha Four stroke 8hp kicker motor.

The boat was minimally used in the past few years, and now after our recent work she is again in excellent condition overall.

We have just completed a full renovation and have invested an enormous amount of time and significant expense to bring this Lund 2150 to her very best condition.  She’s running right and ready to go. Please take time to read about our extensive work described below.  We think you’ll be impressed.

The boat has an E-Z Loader dual axle trailer with new 14×65 white steel wheels and two additional swiveling cockpit seats (as shown in photos). Other accessories include a Garmin EchoMap 95 chart plotter/GPS, iCom VHF radio and Clarion Stereo with four cockpit speakers.

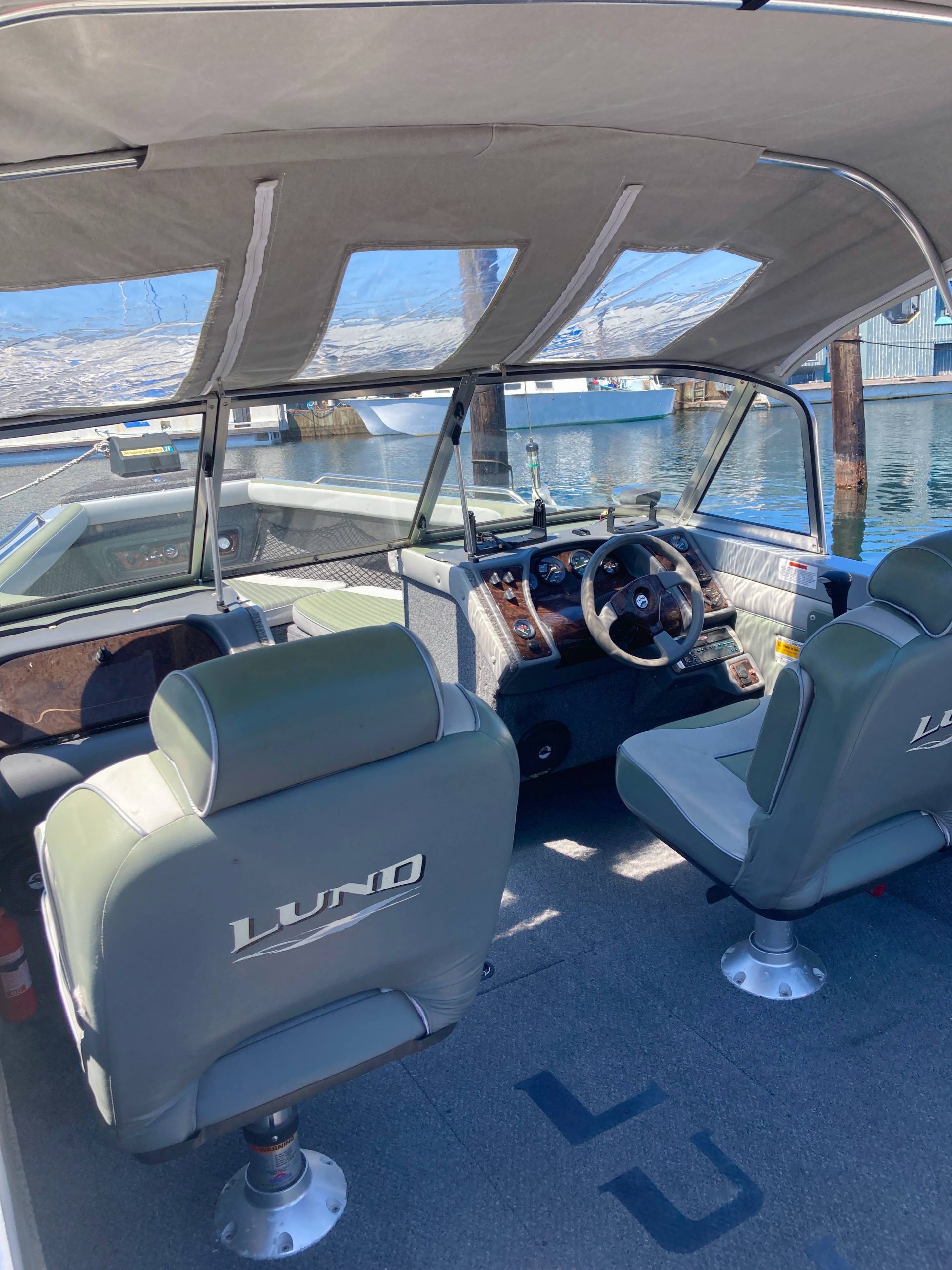

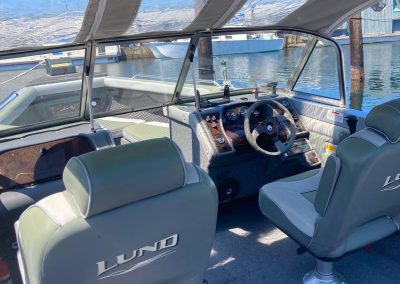

There is a cockpit cover with full standing height, a small cover for the foredeck area and also a full boat cover for longer term storage.  All of these pieces were professionally cleaned and are in good condition.

Please take time to read about our extensive renovations detailed here.

Call soon to set an appointment to see the 21’ Lund in Ballard … but please, no text messages.  David, 206.225.3360

______________________________________________________________________________

Measurementss:

Length; 21′ 10″

Beam; 8′

Depth; 2′ (Approx/)

Weight; 3,200 Lbs. (Approx.)

Fuel Capacity: 80 Gallons in centerline aluminum tank

______________________________________________________________________________

Photo Gallery — Click to enlarge and scroll

______________________________________________________________________________

Integrated Features:

MerCruiser 5.0 V-8 MPI with 260 hp.

Less than 100 hours on the main engine

Sound nsulated and cushioned engine box cover with durable cup holders

Yamaha ‘Four Stroke’ 8 hp kicker outboard

Separate throttle/shift controls for both engines

Combined wheel steering systems to steer both engines

Hydraulic rack and pinion steering control

Fully carpeted in long lasting material impervious to UV

Foredeck controller for winch, 12v/24v connections, battery indicator lights

Mid-deck battery storage provides power to an optional electric trolling motor

Powerwinch 24’ electric anchor winch, 100’ of 3/8” line

Galvanized anchor in foredeck with collapsible flukes, 30’ line

Foredeck seating cushions in good condition

Two foredeck live wells with new circulating pumps

Padded bow bolsters and cargo net storage

Storage cabinet for tackle box trays

Wraparound windshield with center opening walkthrough

Special Edition ‘Pro-Control’ helm console

Four swiveling captain’s chairs with arm rests for anglers

Two bench seats at the engine box for young anglers

Deck mounts for rod holders and adding elec. down-riggers

Recessed deck cleats for mooring

Portside locking cockpit cabinet with storage tubes for fishing rods

Starboard locking cockpit cabinet for accessories and miscellany

Locking glove box for storage at helm

Nice ‘burl wood’ molded accents on dash

Temp., Oil, Fuel, Voltage, Tilt, RPM and Speed gauges at helm

Electric horn, live well pump switches and navigation lights at helm

Soft Touch’ control padded and tilting steering wheel

Cockpit courtesy lights

Fore and aft removable ‘stalks’ for navigation lights

______________________________________________________________________________

Additional Equipment:

Garmin EchoMap 95 SV chart plotter with internal GPS, fresh OS upgrade

NEW extra Puget Sound navigation card for the chart plotter

Standard Horizon VHF radio with folding Shakespeare antennae

Clarion AMA/FM/CD stereo with four waterproof cockpit speakers

Cockpit fire extinguisher

Adjustable ‘tent poles’ for canvas storage covers

Lines and fenders

Four NEW white steel wheels on the E-Z Loader trailer, tires are in good shape

All seating, cushions and upholstery in excellent condition

All vinyl was well cleaned and protected with UV ‘Aerospace 303’ spray

Cockpit and full boat cover were professionally cleaned, in good condition

The boat has been very well cleaned inside and out

_______________________________________________________________________________

Recent Refurbishing:

MerCruiser Mechanical Work:

A simple and silly problem led to our needing to do these significant mechanical repairs. The boat was stored for a couple of years in an outdoor ‘lean-to’ shed while the former owner was away.  The small forward bow canvas cover was used incorrectly and our Northwest winter brought plenty of rainfall dripping off the shed roof !

With her trailer angled in storage, rainwater collected in the engine compartment.  Shouldn’t have been a calamitous problem, except … somebody …  responsible for her storage forgot to remove the hull drain plug ! So, the trapped rainwater got up into the starter motor and also then led to excess moisture and condensation effecting electrical and mechanical devices.

Once we determined her mechanical condition needed quite a lot of attention, it was easier to tackle that large project with the assistance of our friends at Lieb Marine in Ballard, an authorized MerCruiser repair shop.

The main engine and the Yamaha OB motor were removed from the boat, followed by a thorough cleaning of the engine compartment and aft bilge. Since the MerCruiser was now on a shop stand an extensive replacement of parts became the obvious and smart decision.

  ~ ~ ~ ~ ~ ~ ~ ~

New transom housing mount gimbal bearings and U-joint

Inspected exhaust manifolds, risers and “Y” pipe

Inspected hoses, clamps, belts, fuses and seals

New complete engine wiring harness for the MercCruiser 5.0 MPI

New main fuse assembly 90 amp

New starter motor

New fuel pump and fuel cooler assembly

New oil pressure regulator

New oil pressure alarm sender

New crank position sensor

New coolant circulating pump

Electronic Control Module (ECM) was “reflashed” to proper settings

[This process determined there are only 77 total hours on the engine]

New fuel/water separator filter

New battery selector switch

New main engine 12v start battery

New water pump for Alpha outdrive

New tilt arms for Alpha outdrive

New zincs for Alpha outdrive

Yamaha Outboard:

Remove lower unit and replace water pump and housing

New control cables to helm station

New carburetor injection jet nozzle

New engine tilt control motor

Replace drive unit lube oil

New aux. engine 12v start battery

Additional:

New Attwood ‘Sahara’ S500 bilge pump and new float switch

New Fulton 1500 lb. trailer jack

Remove old fuel, clean and refill main tank with new

Boy, …. do those engines run right !!

[And so we promise … there was no internal accident, fire, frozen block, blown gaskets or anything catastrophic which led us here …. just dumb planning.]

_________________________________

Hull Repair Work:

Some of the photos taken on her trailer in the gallery above show a fair amount of surface corrosion to the hull below the waterline.

It is not acceptable to simply sand away the visible portion of the corrosion, slap some bottom paint on an aluminum hull and sell the boat to the next guy — and we wouldn’t do that !

This work was completed by the pros at Pacific Fiberglass in Ballard:

The boat was lifted and set on blocks at Canal Boatyard.

She was fully tarped off and sealed

The hull below the waterline was sandblasted and inspected.

NO evidence of damage, groundings, etc. was revealed on the bare hull

The waterline was adjusted slightly and the hull was taped and masked

Sea Hawk S-76 chromate primer for bare aluminum hulls was applied

Three coats of Interlux Epoxy Barrier Coat primer were applied

Two coats of Colorkote Triple Biocide Black bottom paint were applied

The hull is tight and dry, absolutely properly finished, looks good and should last for years.  We did not spend significant time on other appearance issues.  Thus, the hull sides need some spot painting near the bilge intake vents and then a wax and buff.  The silver topsides shows areas of surface paint corrosions that can be left alone or repaired at your leisure over the winter in the garage.

______________________________________________________________________________

Why … did we do all of this – even given the fact that she is a top-line Lund?  Because we base our reputation on the statements we make below, and we were not going to compromise on that.

We’ve spent close to $25,000, not including our own labor since receiving this boat to our organization.  Now her next owner is going to have the benefit of a very fine, dependable boat that will last for a good long while with regular maintenance.

You want to be that guy?  … call us !
